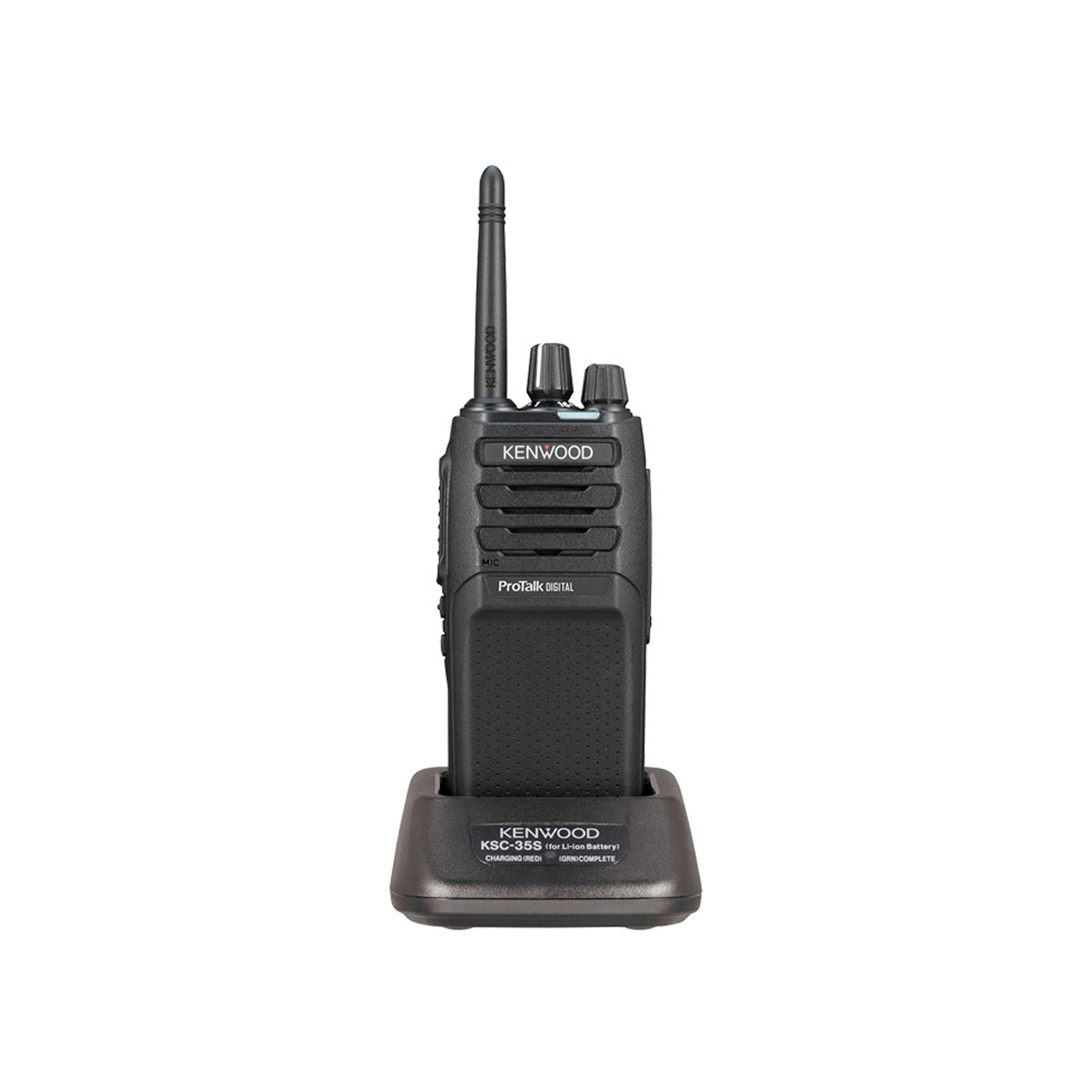

Kenwood - ProTalk (TK-3701D)

KENWOOD TK-3701-D Handheld Radio (PMR-446) – Analog & Digital

The new star in the professional PMR segment.

A professional-grade PMR446 handheld radio with EU approval, supporting both analogue and digital modes. Switch easily between operating modes, with up to 20% improved range in digital mode. Licence-free operation.

Digital radio benefits:

• Improved range compared to analogue (approx. +20% coverage)
• Higher eavesdropping security than analogue communication
• Simple and intuitive operation

Key features:

• Successor to the popular TK-3401-E
• Dual analogue and digital operation on licence-free PMR446 frequencies
• 48 pre-programmed channels (16 analogue / 32 digital dPMR446)
• AMBE+2 vocoder for clear and natural voice transmission
• QT/DQT signalling formats
• Built-in voice inversion (analogue mode)
• Rugged “industrial-grade” design (MIL-STD 810G, IP54/55 certified)
• Compact, robust housing with easy operation

Functions & equipment:

• 4-colour LED indicator (red, orange, green, blue)
• All-in-one package
• Reset function (restores factory settings)
• Battery saver mode
• Call alert signalling
• Enhanced Kenwood audio quality
• Internal VOX capability (software-enabled)
• Adjustable VOX sensitivity (10 levels via software)
• Kenwood ESN (Electronic Serial Number)
• Key lock function
• Battery warning indicator
• Monitor function
• Programmable function keys (2 keys)
• Channel scanning
• Adjustable microphone sensitivity
• Voice announcement
• Voice inversion security
• Windows PC programming and tuning (software required)

General information:

• Compatible with other PMR446 brands
• Multiple optional battery packs available
• EU compliant
• Protection rating: IP54 / IP55
• Military standard: MIL-STD 810 C/D/E/F/G

Technical data:

• 48 channels / 2 zones
• Channel spacing: Digital 6.25 kHz / Analogue 12.5 kHz
• Battery life (with KNB-45L): up to 16 hours (battery saver on) / approx. 14 hours (battery saver off)
• Frequency stability: ±1 ppm (-30°C to +60°C)
• Operating voltage: 7.5 V DC ±20%
• Dimensions (W x H x D): 54 x 123 x 33.5 mm (without accessories)
• Weight: 282 g (with KNB-45L)

Specifications:

• Audio output: 1 W (BTL amplifier, THD <10%)
• RF output power: 0.5 W (PMR446 standard)
